Polar Star

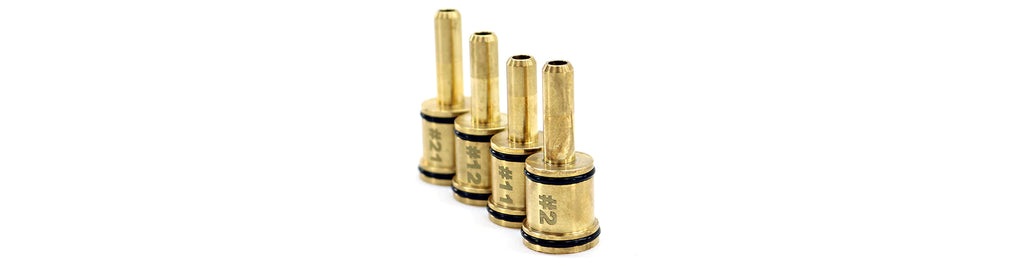

PolarStar - Kythera SA Nozzle,
For cylinder conversion systems we assign numbers to the nozzles instead of using the rifle model. This is because the nozzle length can vary between the same gun model when made by different manufacturers. This can be from the manufacturer designing the rifle differently, or from the thickness of the gearbox shell affecting how far from the hop-up chamber the cylinder sits. Therefore one nozzle length may work in different rifle models but not necessarily work in the same model from a different manufacture. For example, a standard MP5 could require any of 4 different nozzle lengths depending on the manufacturer.NOTE: The Kythera models which are made for a specific replica (e.g. A&K/JG SR-25) with a non-standard length cylinder will use a specific nozzle with a "K" prefix. Since they use a non-standard cylinder, the universal nozzle numbering system cannot be used for these models. However, the design and profile of the "K" nozzles are the same as the standard numbered nozzles and are cross compatible between standard and non-standard cylinders.
Additionally, all nozzles are marked with their number with the exception of the #1 nozzle. These are produced in far greater quantities than all of the other nozzles so they are left unmarked to reduce production time.
| Num | Most Commonly Used With |
Tip |
|
1 (Unmarked) |
TM M4/M16, TM MP5 A/SD, ICS MP5 A/SD, G&G KAC SR-25E2 |
0.841 |
|
2 |
CYMA AK, CYMA MP5 A/SD, G&G UMP |
0.882 |
|
4 |
G&G GR-25 |
1.466 |
|
5 |
ICS SIG 550/551/552 |
0.979 |
|
6 |
KA FAL, TM MP5K, A&K M240 |
0.910 |
|
7 |
PTS Masada, CA SCAR-L |
1.150 |
|
8 |
VFC SCAR-H |
1.523 |
|
9 |
E&L AK, S&T TAVOR |
0.892 |
|
11 |
CA KAC LMG, VFC MP5 A/SD |
0.763 |
|
12 |
LCT AK-47/74/M |
0.851 |
|
13 |
A&K MASADA/ACR, CYMA SR-25 (V2.5 Kythera SA) |
1.362 |
|
14 |
KA CZ 805 BREN |
1.405 |
| 15 | JG G36 | 1.070 |
|
17 |
CA AUG |
1.020 |
|
21 |
Elite Force/CYMA MP5K, CA SA58 |
0.938 |
|
K1 |
A&K/JG SR-25 (V2.5 Kythera SA) |
1.314 |
